Gala Valves Suppliers in Pakistan are an important part of a pipeline system for the transport of liquids and gases. Its sole purpose is to securely control and manage the media. Gate valves and butterfly valves are two common types of industrial valves. They vary greatly in design, use and operating conditions.
In this article, Gala Valves Suppliers in Pakistan will discuss the differences between gate valves and butterfly valves. Start by defining the two in the next section to see the differences before detailing.
Two Types of Gala Valves Suppliers in Pakistan Gate valve and Butterfly valve Meaning

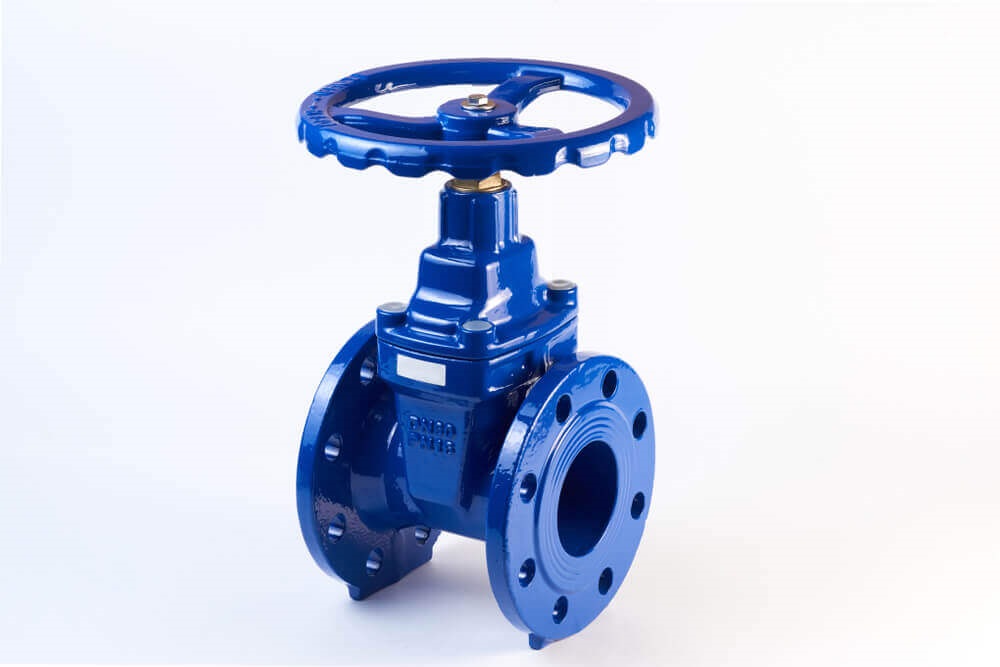

What is a Gate Valve?
Gate valves, also known as valves, cut the pipe around the circumference, removing the square or round “gate” from the centerline. The direction of movement of the door is perpendicular to the flow of the environment.
Gate valves are isolation valves that are use only when minimum restriction and constant linear flow is require. It can be fully open or fully close, which does not allow for average current regulation. The drainage medium is usually full and there is no residue in the tube.

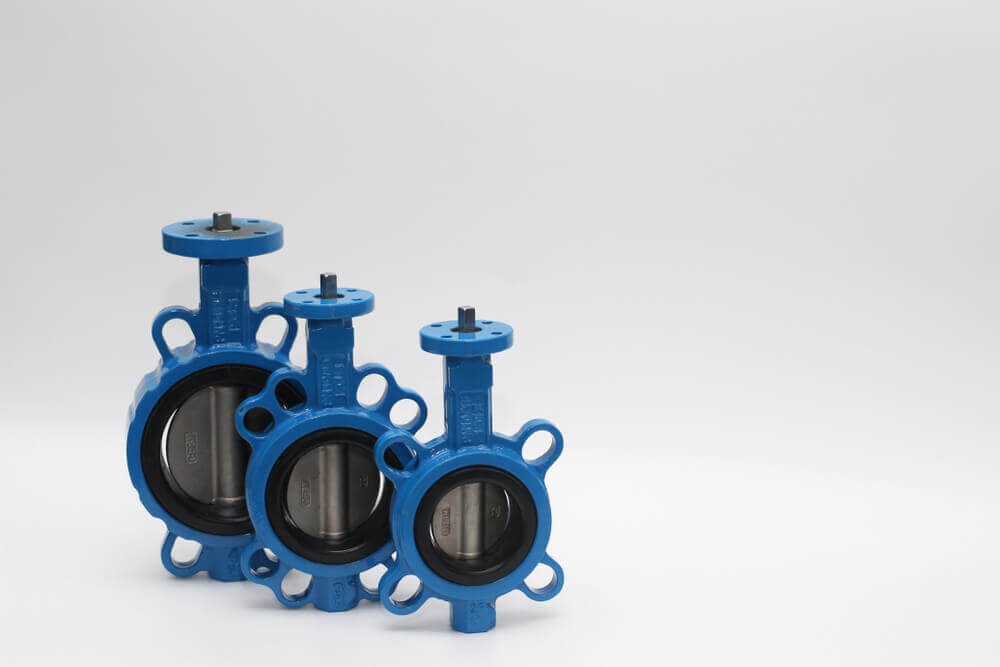

What is Butterfly Valve?
Throttle valves are also call shut-off valves. This includes a hard drive on the door swing for locking and unlocking the door. These discs rotate around the hood shaft to control the air flow in the ducts. The direction of movement of the dial is rotation only and must be rotate 90 degrees to fully open or close the door.
The butterfly valve can be use to control or isolate the fluid flow and easily control the flow. But instead, it will leave sediment in the tube.
Difference between Gate valves and Butterfly valves
After defining gates and chokes in general, you probably already know the difference between the two. In particular, it is recommend for design, use. Let’s talk about the differences in order.
#1 Structural design
Gate valves use a “gate” or wedge, while butterfly valves use a rotating disc to allow or block fluid flow. Gate valves and butterfly valves also have different body and disc designs. which is describe below
#2 Mechanism Action
Gate Valve
Gate valves use a sliding gate or sliding gate to open and close a valve. The operator raises or lowers the door with the help of a mechanic. Which usually use this thread because the valve can be completely open or close. Thus, the resistance to fluid flow is lower when the valve is fully open. Because when the bolt is fully open, the door exits the middle aisle and provides continuous flow.
As a rule, Gala Valves Suppliers in Pakistan operate with maximum medium flow, and the change in the medium speed, not the flow rate, plus the closing and opening speed of the lid is low due to the high opening height.
Butterfly Valve
Butterfly valves are a fourth category of butterfly valves and include a swivel plate to control fluid flow. The disc is secure in the middle of the valve body by a shaft. Unlike gate valves, butterfly valves have short response times because the actuator only turns 90 degrees to allow or block fluid flow in the way.
Butterfly valves are typically driven by an actuator that rotates the valve plate parallel or perpendicular to the flow. When the valve is open and perpendicular, the discs move parallel to each other. In addition, the thickening of the throttle valve creates resistance that blocks the flow of the environment and causes a pressure drop even when the valve is open.
#3 Application
Application of Gate Valve
The gate valve has excellent sealing performance. Therefore, it is often use for pipes that require rigidity. However, it does not need to be replace very much. They can only be use in the fully open or fully close position. It cannot be use to control or control the average flow rate. Because it cannot be control accurately
If the half valve or center valve is open, the seat and valve cover will collapse severely in a short period of time. The vibrating wedge produces sound and tube vibration. Also, the valve opening and closing speed is slow. Therefore, it is not suitable for pipelines that need to be close in an emergency. However, due to the pressure along the valve, the valve will be at a higher pressure than the throttle.
Finally, Gala valves are widely use in large plumbing systems that require a constant bidirectional flow of liquid and gas. Or with one-way exhaust in a limited time
Application of Butterfly Valve
Industrial butterfly valves are lighter than valves. For large pipes, it is easy to use and install. Ideal for installations where gas valves are recommend and space is limited. In fact, gas valves, which are larger than valves, are widely use.
This is because the gas valve opens and closes quickly and can be use well. This makes it ideal for applications that need to open and close quickly. In addition to corrections, it is also use to regulate or control flow rates, especially in the case of emergency stops. Butterfly valves are recommend for pipes with few impurity particles.
Butterfly valves are also known as high performance valves. Suitable for medium to high pressure and high temperature applications.
#4 Price
Under normal circumstances where the diameter and material properties are the same, it is easier to use a butterfly valve than a valve. Gala Valves Suppliers in Pakistan can be cheaper than smaller gas valves. However, larger impeller valves are even cheaper, as larger barrel diameters increase the price. Therefore, it is widely use in various industries.
Advantages and Disadvantages
After explaining the difference between valve and throttle valve The advantages and disadvantages of each type of valve are summarize as follows.
Gate valve
Advantages
The pressure drop is reduce to a minimum. This is because it can create unobstruct flow in the fully open position.
- It is reversible and allows flow in a straight line.
- There was no trace left on the pipe.
- Gate valves carry more pressure than throttle valves.
- The slow motion of the wedge prevents water hammering.
Disadvantages
Without adjusting the average current can only be fully open or completely close.
- Low operating speed due to high valve opening height. Valve seats and valve seats can be severely worn if they are left halfway open.
- which is very expensive compare to bigger throttle valves
- It takes up more space to install and use than a throttle valve.
Butterfly Valve
Advantages
- It can be use to reduce the flow of liquids. and can easily control the flow
- Suitable for use in medium and high temperature environments. and high pressure environments
- Lightweight and compact Takes up less space for installation
- high working speed Suitable for emergency shutdown
- Bigger and more cost-effective
Disadvantages
- sludge remaining in the pipe
- The thickness of the valve body creates resistance that blocks the flow of the environment and reduces pressure even when the valve is fully open.
- Disc movement is not controlled and is affect by current interference.
- The concentrate liquid always flows along the flow path and can hinder the movement of the disc.
- Possibility of water hammer
Conclusion
Gate valves and butterfly valves have advantages and disadvantages depending on the requirements of the install application. In general, valves are ideal for applications requiring only precise tightening and no rework. Especially when there are no obstacles. However, if you want a throttle that takes up less space for larger systems. A large throttle is also suitable.
Butterfly valves are commonly use in most applications. Gala Valves Suppliers in Pakistan offers a wide range of high performance throttle valves with end fittings, body materials, seats and discs. Please contact us if you have any other questions. about our products.
